G-Scan

G-Scan is built for speed: it reads a whole NTFS drive straight from its master file table instead of asking Windows for folder listings. Use it the way the job asks for, on the machine in front of you or one across the network.

Interface	A web page on your own machine. Nothing is scanned until you choose a target, and nothing calls out by itself: About asks garia.net for a newer version only when you click.
Command line	gscan.com --scan C:\ --out c.json scans, writes JSON or CSV and exits with a code, for scripts and RMMs. gscan.exe "D:\data" opens the page on a scan; --ext and --find narrow the file list to certain extensions or names; --server, --agent, --show-key and --check-update do the rest.
Service	The agent runs as a Windows service. Open any machine that has it from your browser.
API	Every button is one HTTP call with JSON, for automation and third-party tools.
Deployment	An MSI with real properties for SCCM, Intune, GPO and NinjaOne, and ready-made NinjaOne scripts for a disk report, a low-space alert and CSV exports.

Scans disks, folders, WSL, network shares and Linux over SSH

C:\ D:\data WSL \\SERVER\C$ \\NAS\share user@host:/path

What you get

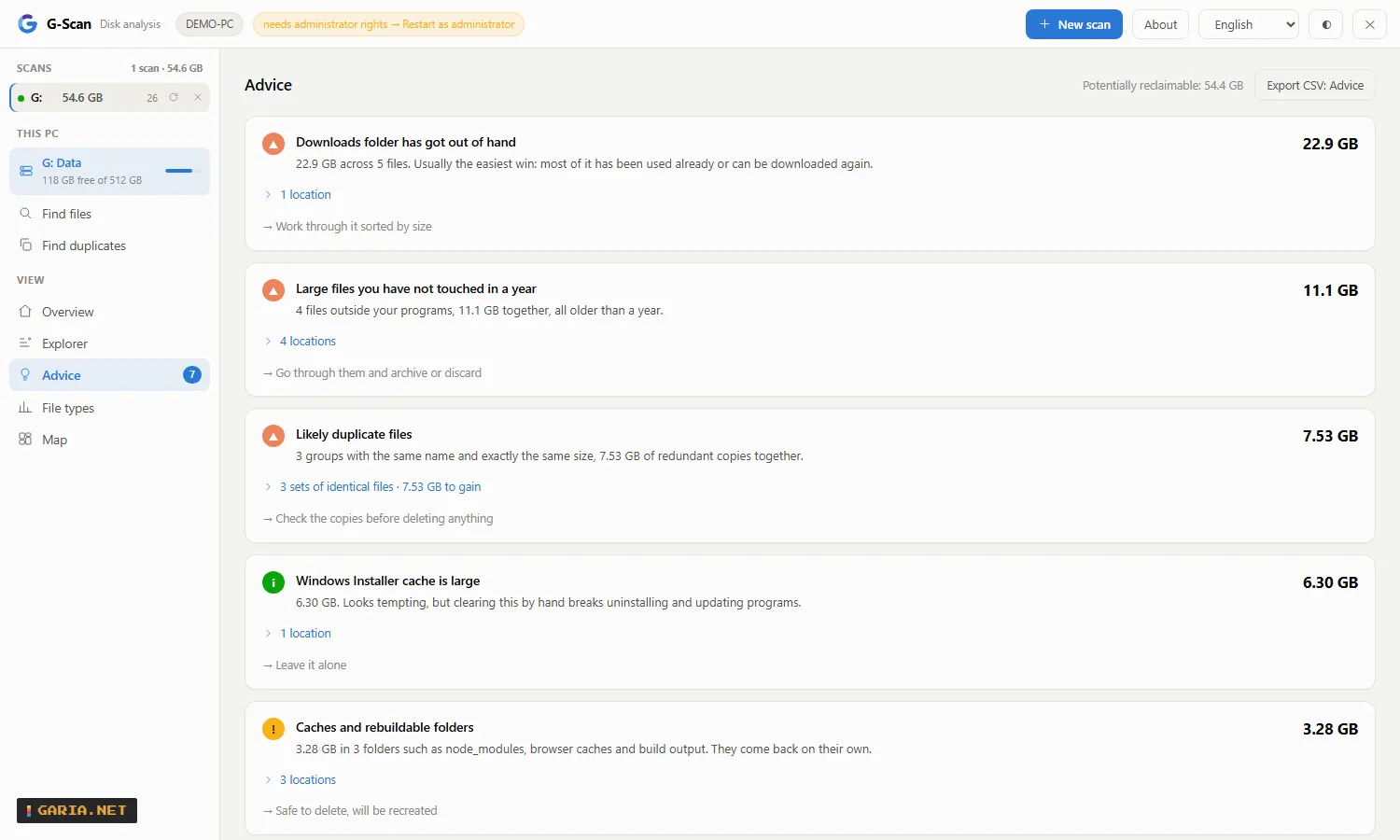

Advice	What can go, with the gigabytes attached, and what to leave alone.

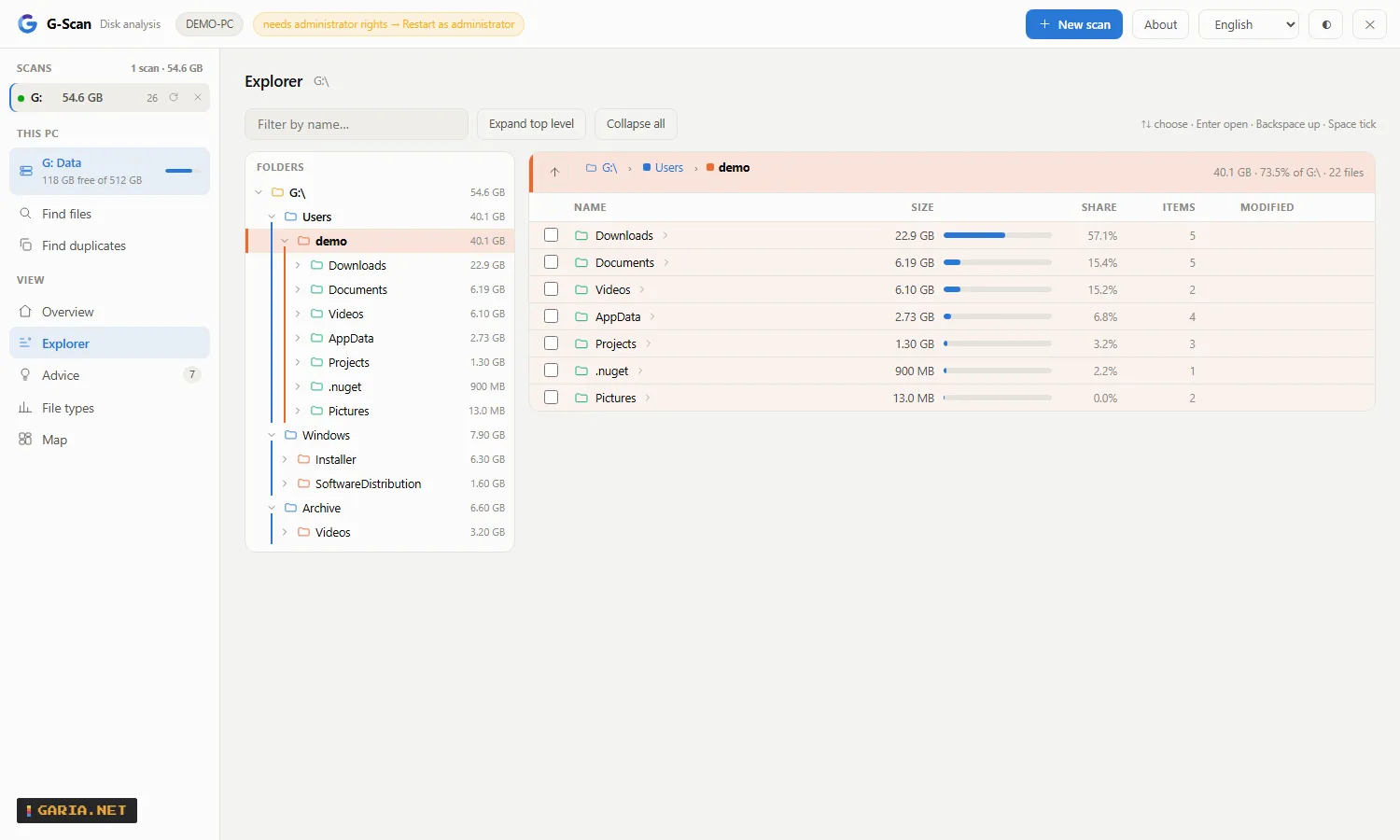

Explorer	Two panes, like Windows Explorer: a folder tree, and the contents of the open folder by size with each item’s share. Every folder level has its own colour on both sides. Driven by the keyboard.
Find files	Where is this. Across the scans you tick, by kind — photos, video, audio, documents, archives, installers — by extension, or by name with a * in it. Nothing is read, so it lists in seconds, and asking again is nearly free: the listing is remembered per scan.
Duplicates	In one scan or several: choose one or more kinds of file and the smallest size, same name or content alone. Confirmed by reading the files.

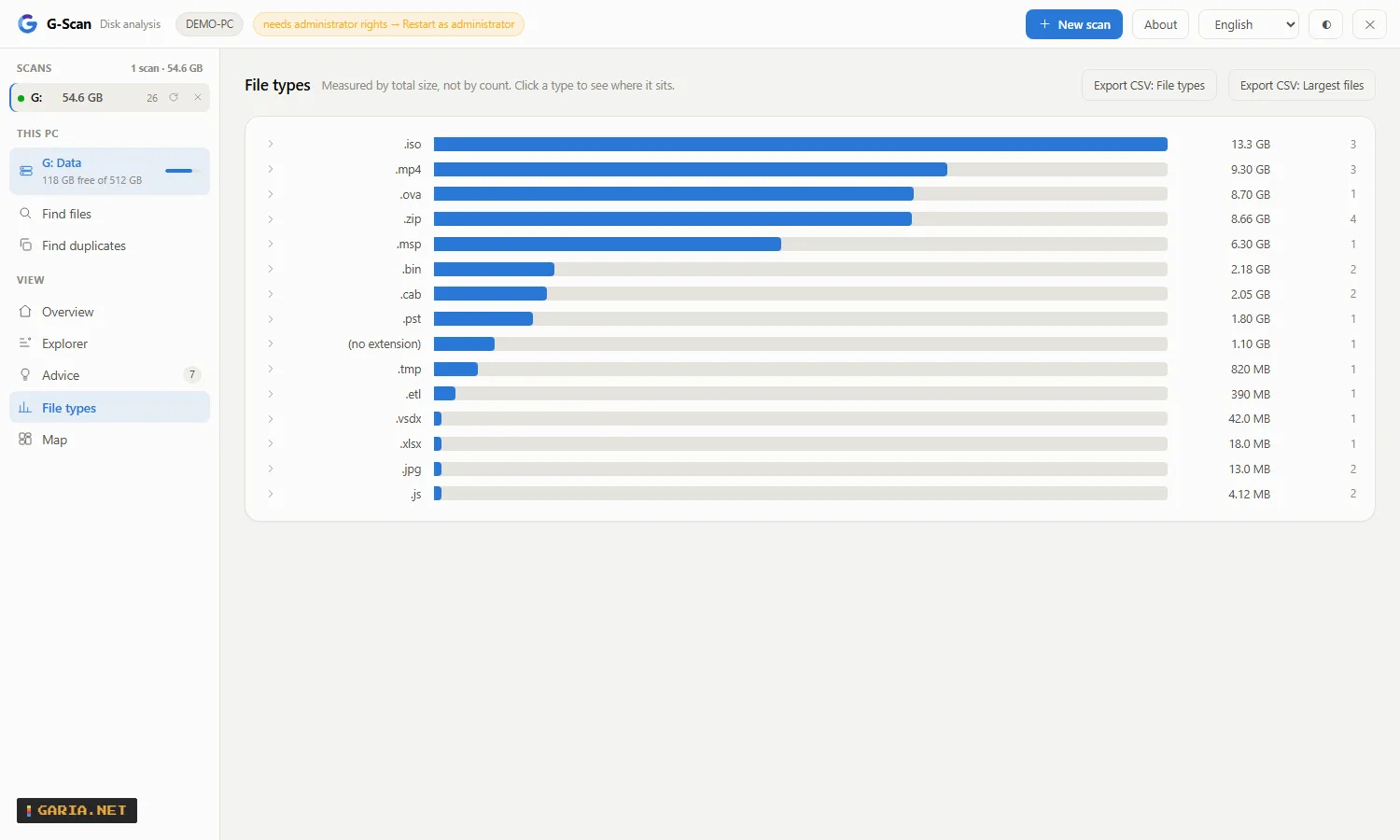

File types	Which kinds of file take the space.
Export	File types, files and advice as CSV from the page, or the whole result as JSON or CSV from the command line.
Map	A zoomable treemap.
Delete	Recycle Bin by default, system paths refused, everything logged with its size. The figures follow at once: in use drops by what was freed, and what went to the Recycle Bin is shown until you empty it.

Without administrator rights it walks folders at about 175,000 files a second and reports what it could not read, instead of quietly showing less.

Scan a folder right away

gscan.exe "D:\data"

Hand it to a user without installing anything

Copy gscan.exe to their machine and let them start it. As a standard user it walks folders and reports the part it could not read; one click on Restart as administrator switches to turbo mode.

One install for the whole team, on a jump host

gscan.exe --server --token <key> --port 8443

Anyone on the network opens http://jumphost:8443/, enters the key once, and scans the host’s disks, any \\SERVER\C$, any NAS share and any Linux host, several at the same time. G-Scan does no TLS itself: keep it on a management network or put a reverse proxy in front.

An agent on a server you check every week

gscan.exe --agent --port 7777
gscan.exe --show-key

Export the file types of a folder to CSV

$gscan = "$env:ProgramFiles\GariaNetTools\G-Scan\gscan.com"
& $gscan --scan D:\data --out types.csv --what types

In a script or an RMM: scan, read the result, act on the exit code

[Console]::OutputEncoding = [Text.Encoding]::UTF8
$r = (& $gscan --scan C:\ --out -) -join "`n" | ConvertFrom-Json
if ($LASTEXITCODE -ne 0) { exit 1 }
$r.advice | Select-Object code, bytes

Use gscan.com, not gscan.exe: PowerShell does not wait for a program without a console. Exit code 0 is done, 1 the scan or writing failed (the reason is on standard error), 2 wrong arguments. The JSON is what /api/result returns, the CSV what /api/export returns. gscan.com --check-update asks garia.net for the latest version: exit code 0 up to date, 3 newer, 1 could not check.

Find every stray mailbox file on a drive

& $gscan --scan C:\ --ext ".pst .ost" --out mail.csv --what files

Or by name: --find "invoice*", where * is any run of characters, ? exactly one, a name with neither means contains, and a semicolon separates several patterns. Both drop the 50 MB threshold, so a small file is found too; the totals still count the whole drive. The same filter is Find files in the page.

Read the agent key straight into a script

$key = & "C:\Program Files\GariaNetTools\G-Scan\gscan.exe" --show-key

Install options

An MSI with real properties, so it goes out through SCCM, Intune, GPO or NinjaOne without a wrapper script. Double-clicked it is a wizard; with /qn only the properties count. Per-machine, 64-bit, and uninstalling removes the service, the firewall rule, the shortcuts, the context menu and the registry keys.

Updating does not ask for a restart, and it keeps the choices of the previous installation unless you pass others. Anything still running from the installation folder is closed first, an agent included: the service through the service manager, and an agent started by a scheduled task or an RMM is closed and then started again with the command line it had. An agent running under an account of its own is closed but not restarted, because its credentials are not the installer’s to hold. What was closed and what came back is written to HKLM\Software\Garia.Net\G-Scan\LastUpdate.

msiexec /i G-Scan-1.16.11-x64.msi /qn
msiexec /x G-Scan-1.16.11-x64.msi /qn

Property	Default	Meaning
INSTALLFOLDER	%ProgramFiles%\GariaNetTools\G-Scan	Install location
UIPORT	7666	Port of the local web interface
AGENT	0	1 installs the remote agent as a Windows service
AGENTPORT	7777	Port of the agent and of its firewall rule
TOKEN	—	Key for the agent; left out, the agent makes its own
CONTEXTMENU	1	Analyse with G-Scan on folders and drives
DESKTOPSHORTCUT	0	Shortcut on the desktop
ALWAYSADMIN	0	1 always starts G-Scan as administrator
SERVICEACCOUNT	—	Account for the agent service; empty is LocalSystem
SERVICEPASSWORD	—	Password for that account; not needed for a gMSA

Everything at once

msiexec /i G-Scan-1.16.11-x64.msi /qn ^
        INSTALLFOLDER="D:\Tools\G-Scan" ^
        UIPORT=8100 AGENT=1 AGENTPORT=8101 TOKEN=<key> ^
        CONTEXTMENU=1 DESKTOPSHORTCUT=0

The setup wizard, silently

G-Scan-1.16.11-setup.exe /VERYSILENT /DIR="D:\Tools\G-Scan" /PORT=8100 /AGENTPORT=8101
G-Scan-1.16.11-setup.exe /VERYSILENT /TASKS="desktopicon,contextmenu,agent"

The web interface listens on 127.0.0.1 only, so it needs no firewall rule. The agent’s rule is inbound TCP on AGENTPORT, private profile, local subnet, and only exists with AGENT=1.

Which account the agent runs as

By default the agent service runs as LocalSystem: it always works and it can read every file. Choose anything else with one thing in mind: an agent exists to read everything, and what an account cannot read is missing from the answer.

SERVICEACCOUNT	When	Password
(empty) → LocalSystem	The default; always works	none
DOMAIN\svc_gscan$	A fleet in AD: a gMSA in the local Administrators group	AD rotates it
DOMAIN\user	When it has to be a named account	yours to manage
NT SERVICE\GScanAgent	Only if you grant that SID the rights yourself	none

msiexec /i G-Scan-1.16.11-x64.msi /qn AGENT=1 SERVICEACCOUNT="CONTOSO\svc_gscan$"

The installer grants the account Log on as a service itself, and keeps SERVICEPASSWORD out of the installation log. A virtual account is low-privileged by design, so turbo mode is unavailable under it.

SYSTEM is not a superset of you. It reaches other machines as the computer account, so a UNC path you can open may be refused. Its SSH keys live in C:\Windows\System32\config\systemprofile\.ssh; a password with the scan avoids that. And what it deletes goes to SYSTEM’s recycle bin and log.

Ready-made scripts for NinjaOne

Three PowerShell scripts that run G-Scan from NinjaOne without a browser, a port or a key. Paste one into the automation library, run it as System, and schedule it. None of them deletes anything, and they work the same from any other RMM or a scheduled task. They also ship in the installation folder under docs\ninjaone.

Script	What it does	Exit code
GScan-DiskReport.ps1	Scans a drive and fills custom fields: a summary, free space in percent, what a safe clean-up frees, and an HTML report of the largest folders and the findings	0 filled, 1 scan failed
GScan-DiskAlert.ps1	Checks free space first and only scans when it is low; the output then says where the space went	0 fine, 1 low
GScan-Export.ps1	Writes the largest files, the file types and the findings as CSV to a locked-down folder, optionally copied to a share	0 written, 1 failed

Custom fields for the report

Field	Type	Holds
gscanSummary	Text	Used, free and safe clean-up in one line, with the largest folder
gscanFreePercent	Integer	Free space in percent
gscanCleanableGb	Decimal	Recycle Bin, temporary files and downloaded updates together
gscanReport	WYSIWYG	The largest folders with their share, and the findings

Create the fields first and allow automations to write to them; other names go in as parameters. Every setting is a parameter with a sensible default, such as -Drive D:\ -MinFreePercent 15, or a script variable with the same name. Tested under Windows PowerShell 5.1 with a stand-in for NinjaOne’s field command, not yet inside NinjaOne itself: if a field stays empty, check its name, its type and whether automations may write to it.

Everything the interface does, from a script

Plain HTTP with JSON, no SDK. Every button in the page is one call, which makes G-Scan easy to build into automation and third-party tools. Against an agent, send the key as X-GScan-Token. The Postman collection has an example for every call, and it also ships in the installation folder under api.

A request that a browser marks as coming from another website gets 403 foreignOrigin, so a web page cannot use G-Scan behind your back; scripts, curl, PowerShell and Postman are not affected. On the machine itself, gscan.com --scan C:\ --out - returns the same result as /api/result without the web server.

# start a scan
$r = Invoke-RestMethod 'http://127.0.0.1:7666/api/scan' -Method Post `
     -Body @{ path = 'C:\'; kind = 'drive'; label = 'C:' }

# wait for it
do {
  Start-Sleep -Milliseconds 400
  $j = (Invoke-RestMethod 'http://127.0.0.1:7666/api/jobs') | Where-Object id -eq $r.id
} while ($j.state -eq 'scanning')

# the findings, as codes with numbers
$res = Invoke-RestMethod "http://127.0.0.1:7666/api/result?id=$($r.id)"
$res.advice | Select-Object code, bytes

Endpoint	Does
GET /api/hello	Is it there, does it want a key, may it be shut down
GET /api/targets	Drives, WSL, machine, version, whether turbo is available
GET /api/browse?p=	The folders inside a path, live, without a scan
POST /api/scan	Start a scan: path, kind, label, and for SSH optionally password
GET /api/jobs	Every scan with its progress
GET /api/cancel?id=	Stop a running scan
GET /api/result?id=	The outcome: tree, largest files, types, advice
GET /api/dirs?id=&p=	Any folder at any depth, with totals
GET /api/files?p=	The files in one folder, live from disk
GET /api/ext?id=&e=	Where one file type sits, and its largest files
GET /api/export?id=&what=	CSV of types, files or advice
POST /api/delete	Delete, with dryrun=1 first; the scan follows at once, with what was freed and what went to the Recycle Bin
POST /api/emptybin	Empty the Recycle Bin on every drive, report what it freed, and update the scans
POST /api/cleanup	Empty the folders of one finding: temp files or Windows updates
GET /api/verifydups?id=	Confirm suspected duplicates by reading them
POST /api/dupsacross	Find duplicates: scans (ids), extensions (exts), smallest size (min), same name (names); GET for progress and the result
POST /api/findfiles	Find files: scans (ids), extensions (exts), name patterns (names), smallest size (min), sort; returns at once
GET /api/findfiles	Its progress, or the files it found with the choices it ran with. The listing is remembered per scan, so a narrower question is answered without reading the disk again
GET /api/reveal?p=	Open Windows Explorer there, on that machine
GET /api/forget?id=	Drop a result and free its memory
POST /api/elevate	Restart with administrator rights, local only
POST /api/quit	Shut down; an agent refuses
POST /api/update	Ask garia.net whether there is a newer version; only when called

A Linux host over SSH, with a password

curl -s -H "X-GScan-Token: $KEY" -X POST \
  -d "kind=ssh" -d "label=web01 /var" \
  --data-urlencode "path=admin@web01:/var" \
  --data-urlencode "password=$SSH_PW" \
  http://server:7777/api/scan

The password reaches ssh.exe through askpass, not its command line, and is not kept with the scan. Findings come back as codes such as recyclebin, tempfiles and duplicates, so a script can set thresholds without parsing sentences.
